DT Photon

Precision Lighting for Cultural Heritage

The DT Photon series is the only lighting designed specifically for Cultural Heritage imaging and color reproduction. They provide preservation-grade spectrally accurate color reproduction, conservation-friendly UV-filtration and operating temperature, and industrial-grade build quality and longevity.

Both the 19″ DT Photon and 38″ DT Photon XL can be used for standard photographic lighting and used with any copy stand. The DT Atom was specialized designed to hold two 19″ DT Photon units, without the need for floor stands or ceiling mounts.

The DT Photon can also be placed under an object such as photographic film or a watermarked manuscript in order to provide transillumination. It fits in the interior cavity of the DT Atom or placed on the tabletop of any copy stand and used as the object-bearing surface; the top surface runs at 92 degrees Fahrenheit (33C), about the same as a human hand.

Made in the USA.


The New DT Photon SmartController

The DT Photon SmartController provides variable dimming and lighting capabilities for a more ergonomic workflow and photo environment.

DT Photon and Photon XL Specs


Color Quality
Color Rendering Index
Color Rendering Index
Color Quality Score
Color Quality Score
Spectral Flatness: Excellent
Color Temperature: 5600 Kelvin
Color Profile: Included in
Capture One CH
Warm Up Time: Fully stable color in under 10 seconds
Mounting Bracket: Included
Weight (Photon): 10 lbs
Weight (Photon XL): 16 lbs
Certifications: CE
Voltage: 100-250 V AC
Frequency: 45 – 65 Hz
Input: Max 4A @ 120 V or 2A @ 240 V
Output / channel: 5 A @ 24 V DC
Watts: 480 W Max
Construction Metal
Origin Made in the USA
Warranty 3 years
Expected bulb life 25,000 hours (35 hours per week for ~14 years)


DT Photon utilized as a transmissive light box in the DT Atom

Illumination Amount

Two DT Photon XL
15 feet to subject
ISO100, 1.0 sec @ f/8
(illuminating 144″ x 216″ area)
One DT Photon XL
6 feet to subject
ISO100, 1/5 sec @ f/8
(illuminating 48″ x 72″ area)
Two DT Photon XL
5 feet to subject
ISO 100, 1/8 sec @ f/8
(illuminating 48″ x 72″ area)
DT Photon  ISO 100, 1/60th, f/8


Mounting Bracket DT Photon: Available
DT Photon XL: Included
Weight DT Photon: 10 lbs
DT Photon XL: 16 lbs
Certifications CE
(total including protrusions)

DT Photon:
19.625″ x 10.625″ x 6.5″

DT Photon XL:
38.5″ x 10.625″ x 3.625″

DT Photon Control Box:
12.5″ x 8.375″ x 4.25″

Size of Illuminating Area

DT Photon:
18.125″ x 9.115″

DT Photon XL:
36.81″ x 8.865″

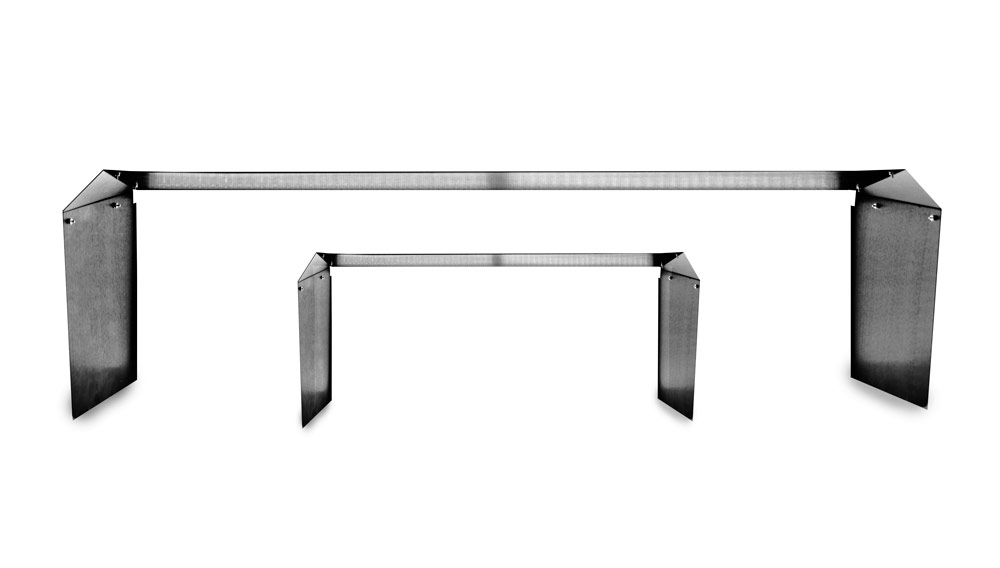

Hoods available for both Standard and XL sizes.

Provides exceptional light control and unwanted flares & illuminations.

DT Photon utilized as a transmissive light box in the DT Atom, zoomed out view with glass film carrier featured.

DT Photon’s in default state on the DT Atom

Optimized for Capture One CH

The smooth spectrum of the DT Photon is precisely mapped in the calibrated color profiles found in Capture One CH.
Learn More about Capture One CH.
