Cultural Heritage Digitization Station – Powered by Phase One

The Zeutschel ScanStudio, an all in one solution for Cultural Heritage imaging.


Zeutschel + Phase One


Zeutschel has more than five decades of experience providing imaging solutions to the Cultural Heritage community. Many institutions, libraries, and museums have been using their legacy scanning-style systems to digitize their collections.

At last, DTDCH and Zeutschel have teamed up to bring you the Zeutschel ScanStudio, a next-generation instant-capture cultural heritage imaging station, powered by Phase One digital backs and image processing technologies.

Specializing in:
Loose manuscript material
Blue Prints
Bound Documents & Books
Small Paintings
Photographic Prints
Small Items (Stamps, Miniatures, Etc)
Glass Negatives
35mm film up to 11″ x 14″ sheet film

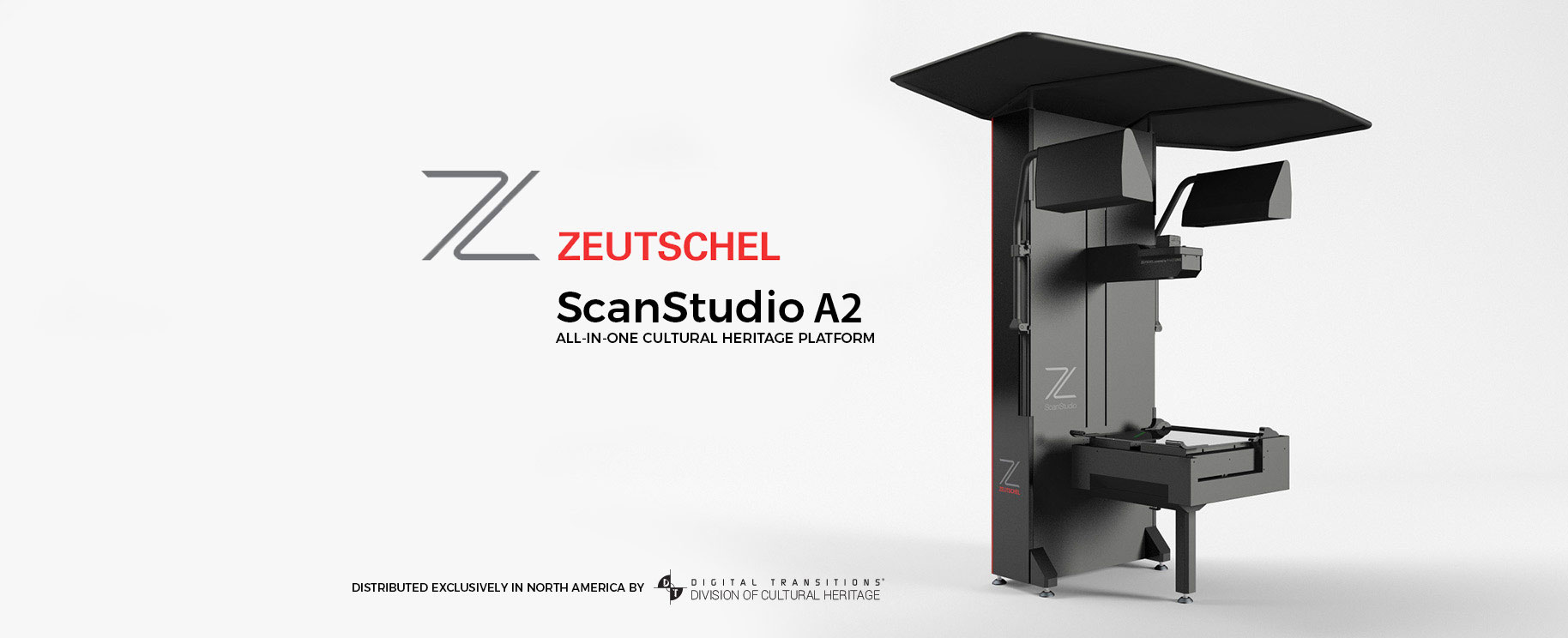

Zeutschel ScanStudio

Preservation Image Quality


  • The preservation-grade image quality you expect from a Phase One based capture.
  • AutoPPI: Automatically moves camera and focuses based on document size.
  • Available in 50mp and 100mp models. Upgradeable in the field to future resolutions.
  • Handles material as large as A1+ size to as small as a stamp or small-format film.

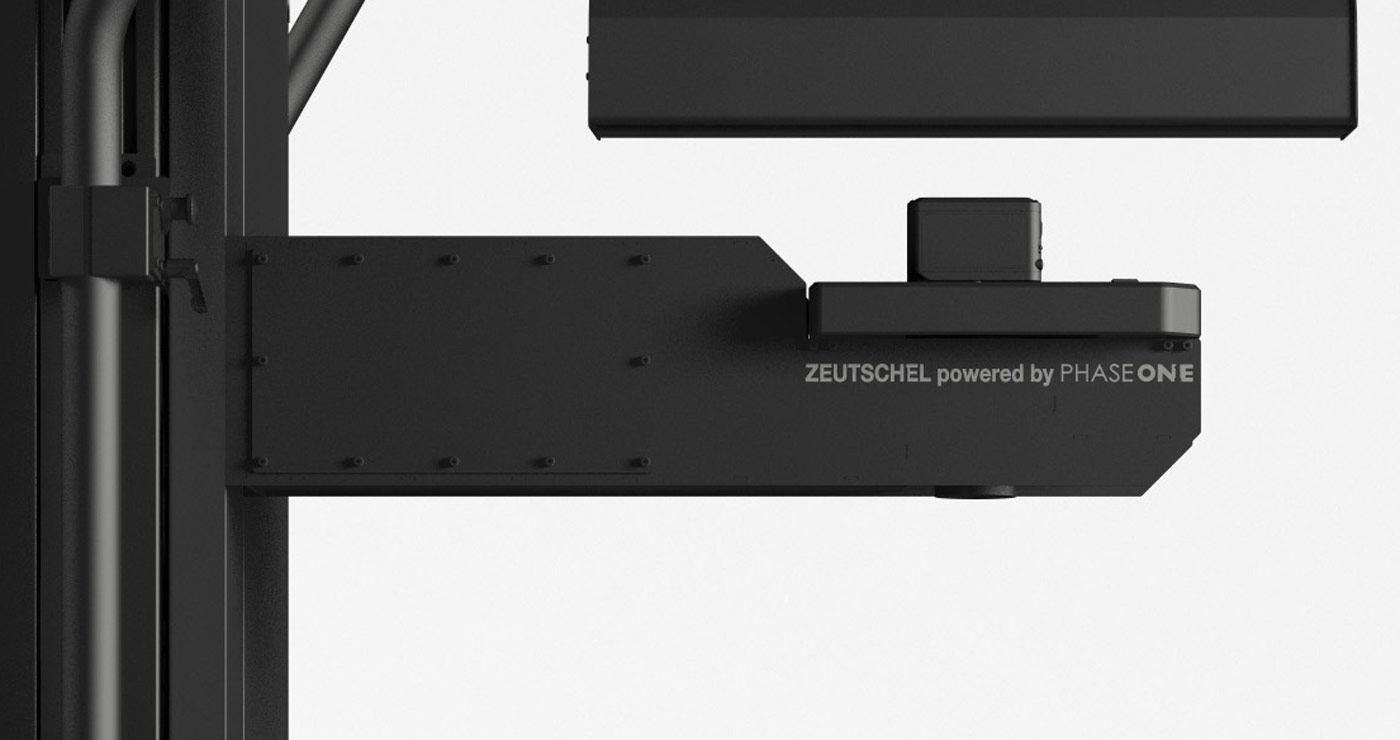

Inside the Zeutschel ScanStudio is a 50mp or 100mp Phase One digital back, processed through the legendary Phase One raw processing pipeline, which means you’ll get the same high resolution, 16-bit, color accurate files offered across DTDCH’s product line. The Phase One sensor is 54x40mm, 2.5 times larger than a small-format camera like Canon or Nikon and 5 times larger than sensors used in many low-end digitization systems that claim high resolution.

This means great dynamic range, clean shadows, accurate color, and quality that surpasses the requirements of FADGI 4-star, Metamorfoze, and ISO 19264-1 A Quality.



Modular, Upgradeable


The Zeutschel ScanStudio is eminently upgradeable. The version with a 50mp Phase One digital back can be upgraded to 100mp, and both current models will be upgradeable to future Phase One models. The carriage is also upgradeable for different size platens or for book scanning.



Same Simple Zeutschel Usability


If you’ve used a Zeutschel you know how simple the user interface is. The Omniscan software provides the user a purpose-built ecosystem for digitization.



Omniscan Software


Omniscan Capture Software from Zeutschel is well known in the industry as an All-in-one software for digitization projects with image capture, image editing, indexing, output in various data formats. Omniscan 14 includes compatibility with the ScanStudio allowing for complete control of image capture.



Durable Instant Capture


Legacy Zeutschel systems used an old fashion planetary scan head and a mechanically sweeping light source. Both required movement on every capture, causing wear and tear over time. The ScanStudio uses the modern instant capture method that DTDCH has advocated for a decade. This means only an industrial-strength rotary shutter moves during an exposure, a component which has an expected life of over 4 million captures.



High Resolution ScanStudio Images


Use the form below to view high resolution images from the Zeutschel ScanStudio right in your desktop or mobile device. Enter your email and a link will be mailed to you.

If you are having issues with this form please email Doug at direct.


Support from DT


The Zeutschel ScanStudio is sold and supported exclusively by the Digital Transitions Division of Cultural Heritage. That means you’ll get the same quality of support as we provide on all our products. With offices in New York and LA, and a team of 17 professionals located in five states we are devoted to providing top quality service to our customers.

We have been a partner with Phase One since our opening day more than 13 years ago and have had a global partnership starting in 2013 to bring DTDCH Cultural Heritage digitization equipment to the world. Digital Transitions at large has also been the #1 source for Phase One digital backs, bodies and lenses in the US and was awarded Support Partner of the Year in 2015.

Ready to take the next step?


Digital Transitions’ Division of Cultural Heritage is the sole exclusive dealer in North America for the Zeutschel ScanStudio. Please contact us for pricing, in person / virtual demonstrations, or just to learn more about this fantastic new product.

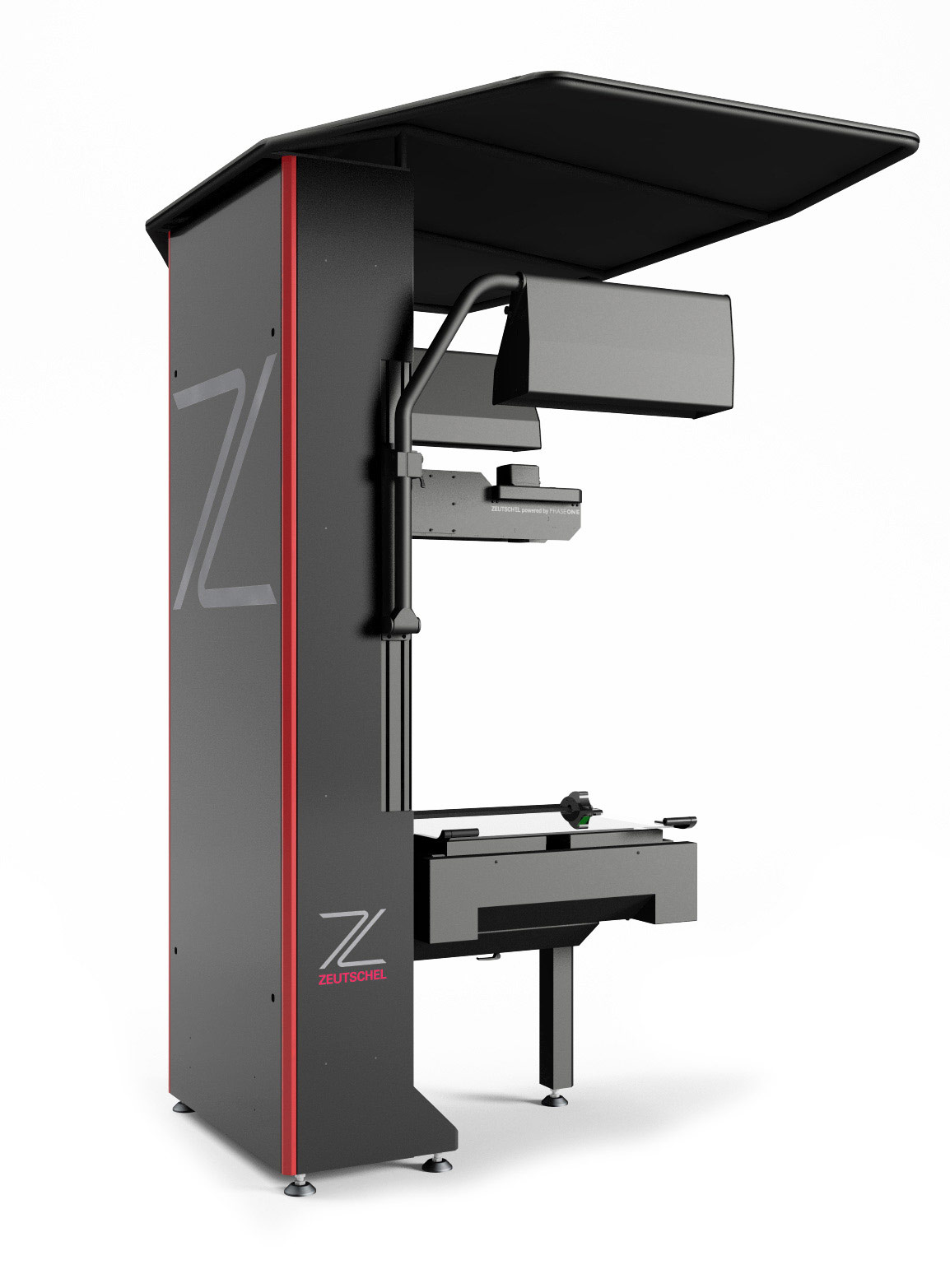

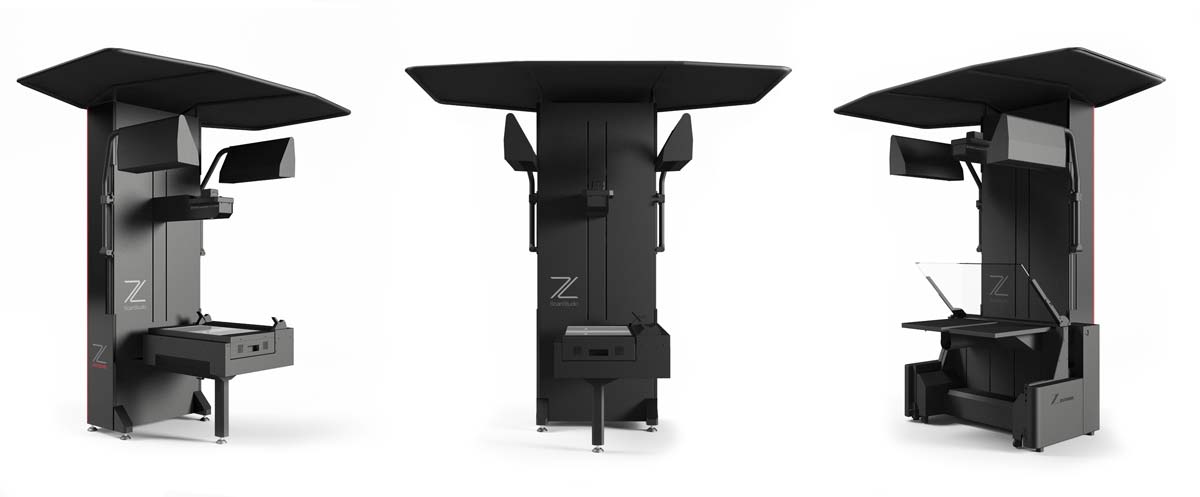

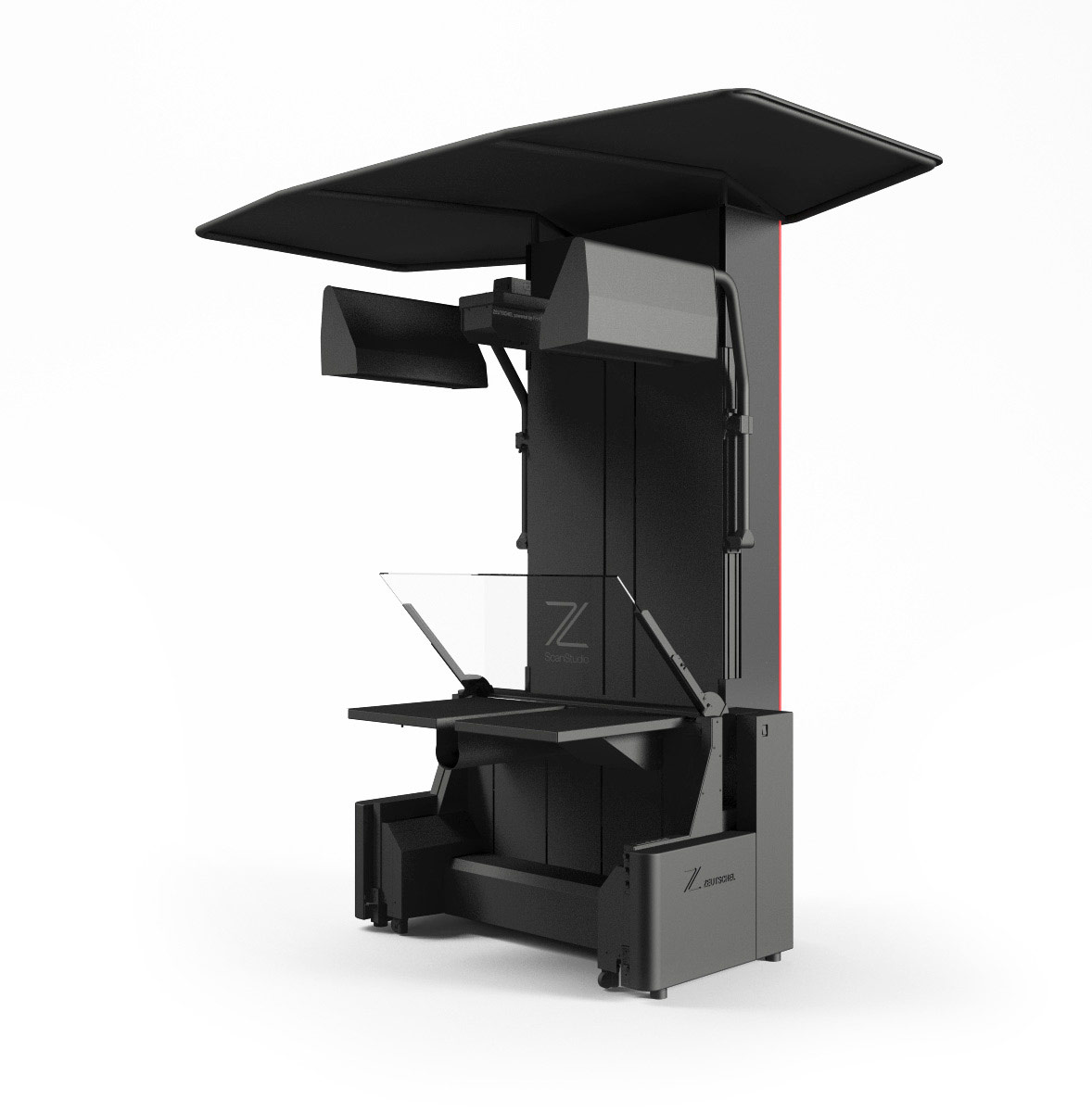

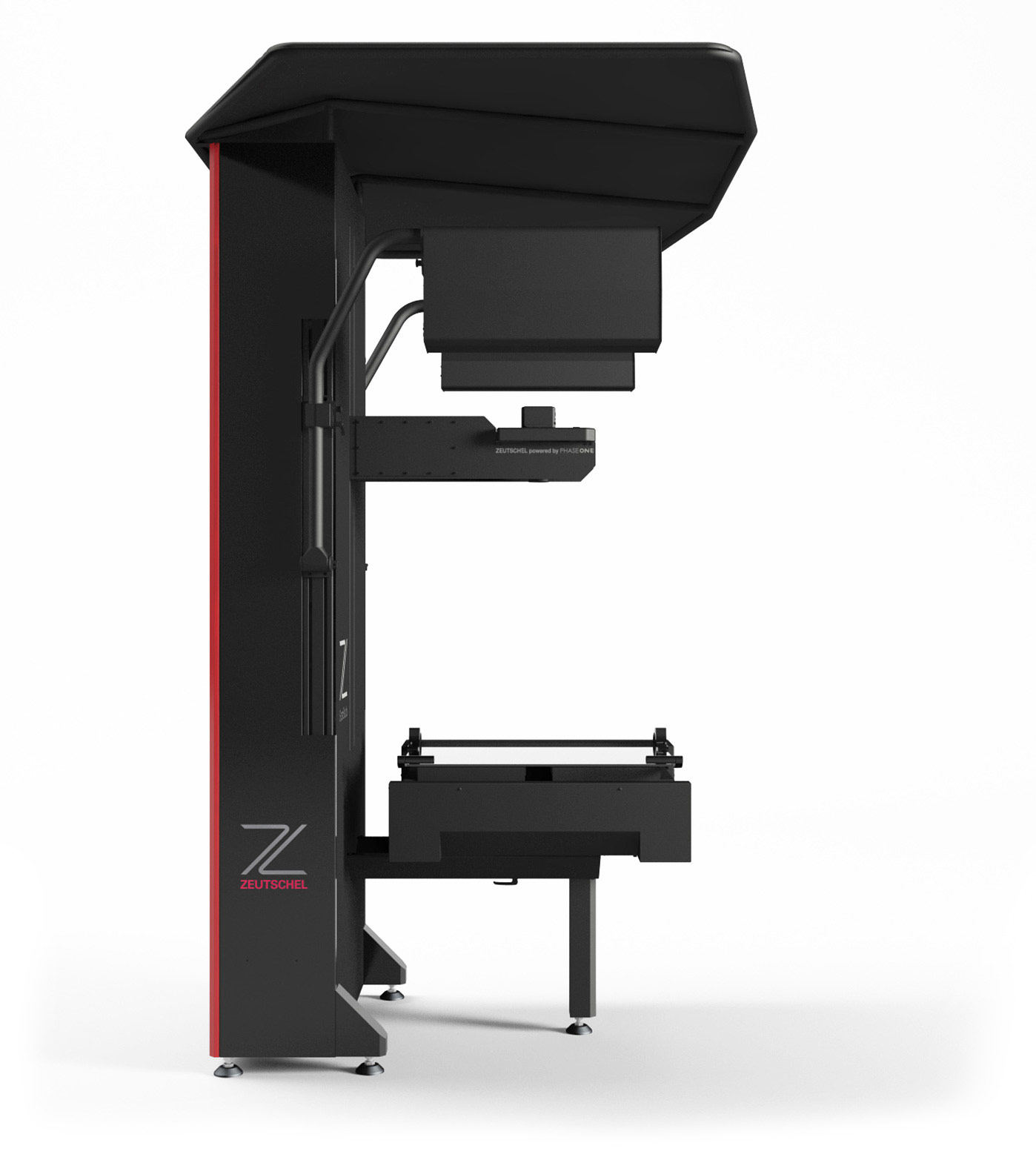

ScanStudio Product Images

ScanStudio Technical Specifications


Sensors Up to 100 MP today. Upgradeable in the future.
Technology Phase One CMOS Sensor
Sensor format Medium Format 645 (53.7mm x 40.4mm)
Image Bit Depth 16 bit per channel (48 bit total)
Dynamic range 14 stops
Dynamic range density 4.2
Max Resolution Up to 9,000 PPI


Camera type Zeutschel ScanSudio Camera
Shutter Rotary shutter. Expected life > 3 million actuations
Shutter 1/50 sec-Ꝏ
Lens range 60 – 120 mm
Lens detection Optical, Automatic

Reprographic Stand

Dimensions Height 94.5″ x Depth 31.5″ x Width 47.2″
Working height 27.6″ – 35.4″ Adjustable
Autofocus / AutoPPI Yes
Environmental Light Control Glare and Stray light

Cradles Systems

Advanced Plus Cradle Up to A2+ Size, automatic pressure controlled
Vacuum table Adjustable up to A2+
Transmissive Light source Up to A2, stand alone or with Advanced Plus cradle. Adjustable illumination strength, adjustable light spectrum.
Film Carrier 35mm up to 8x10″
Glass Negative carrier With 4-way masking
A1 Extension Kit OT 180 H35; OT180 H50, OT 90 book cradle


LED Full spectral LED
illuminance Adjustable 500 – 4500 Lux
Ergo Flash Ergonomic design, non dazzling, automatic soft dimming


Scanning Time 50 ms typical
Cycle time 3.4 – 6 seconds depending on computer configuration


ISO 19264  A
FADGI 4 Star
Metamorforze Full Metamorfoze


Power 110-240 V, 50/60 HZ, 480 VA
Electrical Safety 60950-3; IEC 62368-1:2014
EMC EN 55022; EN55024; EN61000-3-2; EN61000-3-3
US,CAN: FCC, Part 15 class B, ICES-003 Class B
Lamp Safety System Meets EN 62471 Standards


Operating system Windows 10 / 64 bit
Software Omniscan 12.10 / Omniscan 14
Color management Built-in ICC Profiles
Book curve correction Perfect Book 3.0


Depth 31.5″
Width 47.25″
Height 7.9′
Working Height 27.5″ – 35.4″

Operating Conditions

Recommended Temperature 65° – 95°
Recommended Humidity 80%

Operating System

Operating System Windows 10 64-Bit
Main Application Omniscan Version 14 64-Bit
Output To Hard Drive, Network, Email, FTP or Printer
Output Formats IIQ, TIFF, TIFF-G4, TIFF Multipage, JPEG, JP2, BMP, PNG,
GIF, PCX, PDF, PDF Multipage, iHQC
